Otowave 302 & 302+

Compact and space saving desktop tympanometers

Our Otowave 302 and Otowave 302+ desktop tympanometers are designed for fast and accurate middle ear measurements for audiology, ENT and primary care. Thanks to their small footprint, these devices will find a place anywhere in your facility.

The Otowave 302 includes the perfect test array to assess all ages and identify the most common middle ear pathologies; these include 226Hz tympanometry, ipsilateral and contralateral reflex testing.

The Otowave 302+ offers quick accessible test settings with the additional feature of selecting patient profiles including adult, child and neonate.


Brochure 302 Manual 302+ Manual Tech specs

Find out more

For more information please contact our customer support team.


Contact us

Screening and diagnostic testing

These tymapnometers are suited to screening and diagnostic requirements and have been designed with the key test batteries required for fast and efficient testing. Utilising the clearly laid out keys and display, the operator is easily able to define test settings, monitor progress during the test and evaluate results.

The handheld probe allows for accurate placement within the ear canal and allows for easy results measurements, especially on younger subjects (e.g. identifying Otitis Media). The integrated LED’s inform the operator on next action steps ensuring that the focus is maintained on the patient at all times.

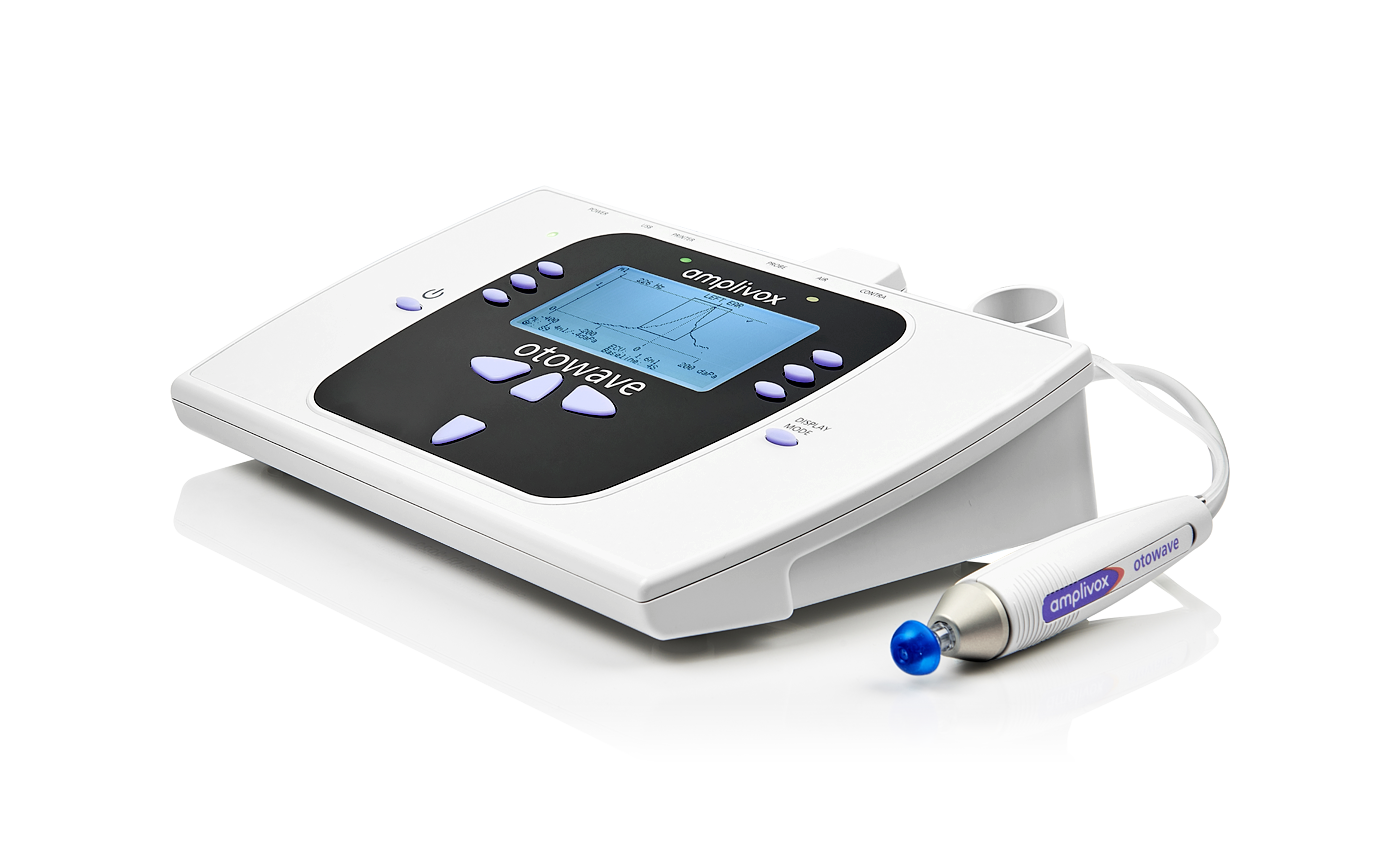

otowave-302plus-tympanometer-side-angle

Key features

  • Compact design with clear and large digital display
  • 226Hz probe tone
  • 1kHz probe tone (Otowave 302+) with admittance, susceptance and conductance measurements (YBG)
  • Live tymp display - measurements shown in real time
  • Ipsilateral and contralateral reflex frequencies (0.5, 1, 2 & 4kHz)
  • Enhanced mode reflex test
  • Auto pass/refer evaluation (ear canal volume)
  • Fully customisable test protocol
  • User-selectable measurement speeds
  • Connection to thermal printer
  • PC results management software included
  • Noah and OtoAccess® connection modules.

Define your settings and routine

Test settings and routines can easily be changed depending on your preference or test subject in question.
The Otowave range allows you to quickly define the following test settings:

Probe tone (226 Hz high frequency (1kHz) included with Otowave 302+ model)
Sweep speeds
Ipsilateral reflex frequencies
Contralateral reflex frequencies
Frequencies and test levels follow on routines
Adjustable peak definition for tympanograms (air pressure)
Adjustable pass/refer criteria for reflex measurements with automatic detection.

otowave-302plus-in-use

Neonatal test functionality

The Otowave 302+ adds extra testing capability by adding 1000Hz probe tone for testing infants under (six months) with advanced results analysis (scalar, vector and component measurements; admittance (Y), susceptance (B), conductance (G)).

When testing subjects of different ages or needing to quickly switch through different test routines, switching is made easy with the Otowave 302+ by allowing switching between six test profiles at the press of a button. Three test profiles for adult, child and neonate are includes with three customisable profiles available for your needs.

  • Included

    • Eartip selection box
    • Contralateral transducer
    • Test cavities (4)
    • Spare probe tips and gaskets
    • Carry case
    • Power supply with country adaptors
    • USB cable (PC connection)
    • ampliSuite PC software (stand-alone)
    • Noah impedance module.

    CPT codes
    92570: acoustic immitance Testing (tympanometry, reflexes and decay)
    92567: tympanometry
    92568: acoustic reflexes

    Standards
    Tympanometer IEC 60645-5
    Type 2 Safety IEC 60645-5

    Three year warranty as standard. Please note: product availability may differ depending on country regulation and registration. For further information please contact us.

  • Optional

    • Thermal printer
    • Ear tips
    • USB portable power bank
    • OtoAccess® database.
