Otowave 102

Intuitive handheld tympanometer

The Otowave 102-1 and 102-4 are the favoured choices of audiologists, ENT and hearing healthcare professionals for fast, effective screening tympanometry requirements.

With the automatic pass/refer result evaluation, results can be obtained with minimal effort and with no response required from the patient.

The perfect choice for screening children who may be suffering from ear infections within the eustachian tube and middle ear, such as otitis media (glue ear) and other hearing loss disorders.


Brochure Manual Tech specs

Find out more

For more information please contact our customer support team.


Contact us

Mobile tympanometry

The Otowave 102 combines portability with usability. While being lightweight and small to fit any hand size, the device comes with a large LCD screen for excellent graph review. With time being a valuable commodity the audiometer offers two different sealing techniques to maximise test outcomes and reduce patient test times.

Traveling audiologists will appreciate the tympanometer being powered by AA batteries which can be effortlessly exchanged in the field, improving the flexibility and quality of service offered to your clients.

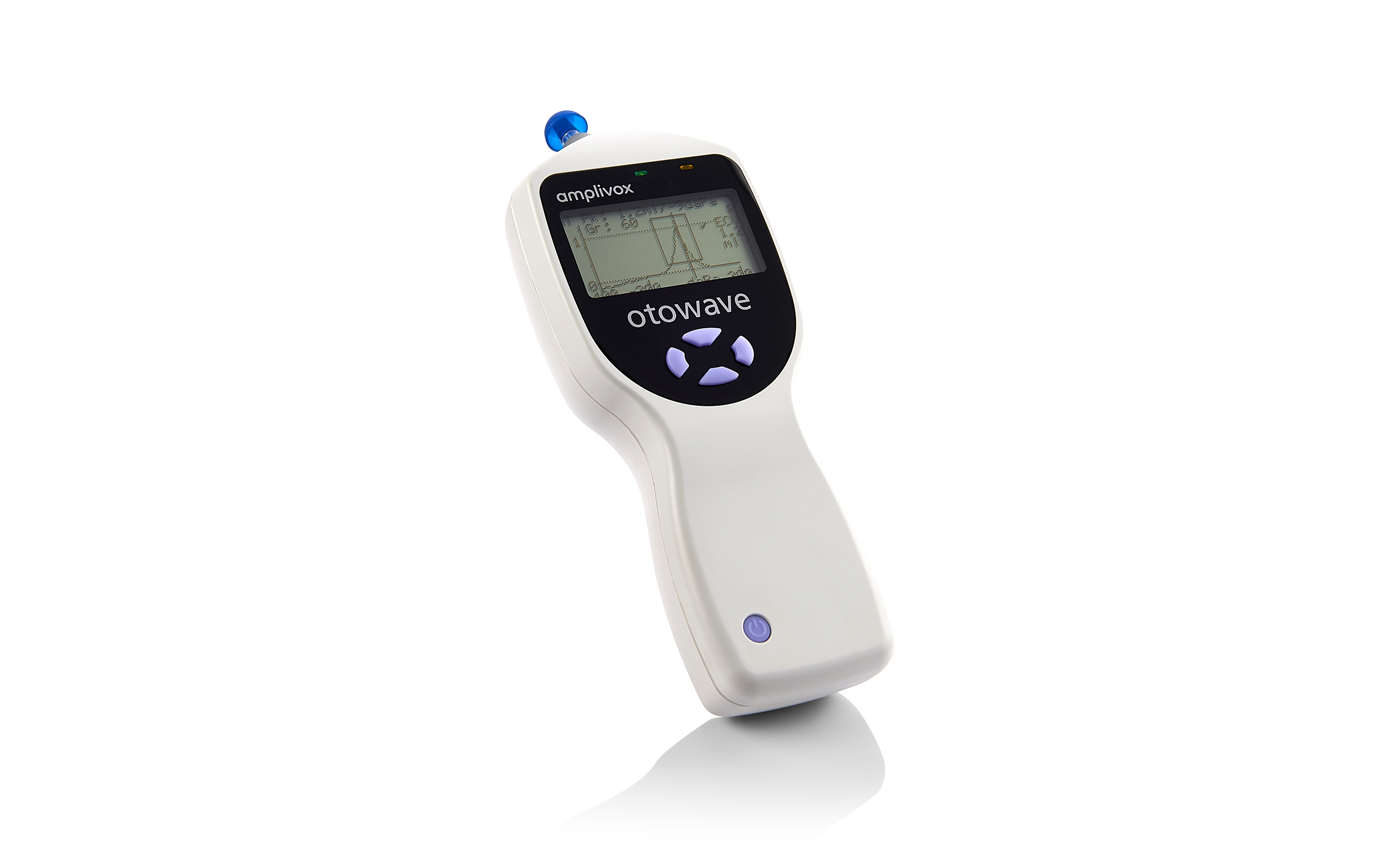

otowave-102-side-angle

Key features

  • Portable, handheld design
  • 226Hz probe tone
  • Live display
  • Fully customisable test protocol
  • One or four ipsilateral reflex frequencies
  • Multiple level and single level reflex tests
  • Auto pass/refer evaluation
  • AA battery powered
  • Internal memory, wireless printing to thermal printer and PC connectivity.

On-screen results

While showing the measurements live on screen, additional information about the peak pressure (in daPa) and peak volume (in ml), the gradient and ear canal volume are stored with each tympanometry session. Within the tympanogram, the compliance peak can be selected if required, allowing the pass/refer result to be adjusted.

Acoustic reflex results are shown in frequency specific, large graphs including the pass and refer evaluation. Results can be printed or saved in the internal memory. Free integration to Noah, Auditbase and OtoAccess® are included along with Amplivox’s complimentary results processing software, ampliSuite.


otowave-102-in-use

Fully customisable

The Otowave 102 comes with a pre-defined user protocol, so out-of-the-box tympanometry measurements are possible. As each patient is unique, the Otowave 102 test sequence is customisable to match your special requirements. Ipsilateral acoustic reflex tests can be set in order to perform up to four test frequencies at a variety of levels (70 to 100dB) or at a single test level for screening tympanometry purposes.

With an air pressure range of -400 to 200daPa, different middle ear problems can be screened. Pass/refer criteria can be defined for acoustic reflex tests and the peak of the tympanogram manually re-defined if required.

  • Included

    • Eartip selection box
    • Test cavities (4)
    • Spare probe tips and gaskets
    • AA batteries (4)
    • Carry case
    • ampliSuite PC software (stand-alone)
    • Noah impedance module.

    CPT codes
    92570: acoustic immitance testing (tympanometry, reflexes and decay)
    92567: tympanometry
    92568: acoustic reflexes

    Standards
    Tympanometer IEC 60645-5
    Type 2 Safety IEC 60645-5

    Three year warranty as standard. Please note: product availability may differ depending on country regulation and registration. For further information please contact us.

  • Optional

    • Thermal printer
    • Infra red IrDA cable (PC connection)
    • Rechargeable batteries
    • Ear tips
    • OtoAccess® database.

    Request a price list >

  • Consumables

    High-quality bespoke consumables and accessories to support patient testing programmes, reduce the risk of infection and optimise the performance and reliability of equipment.
