PC-based spirometer

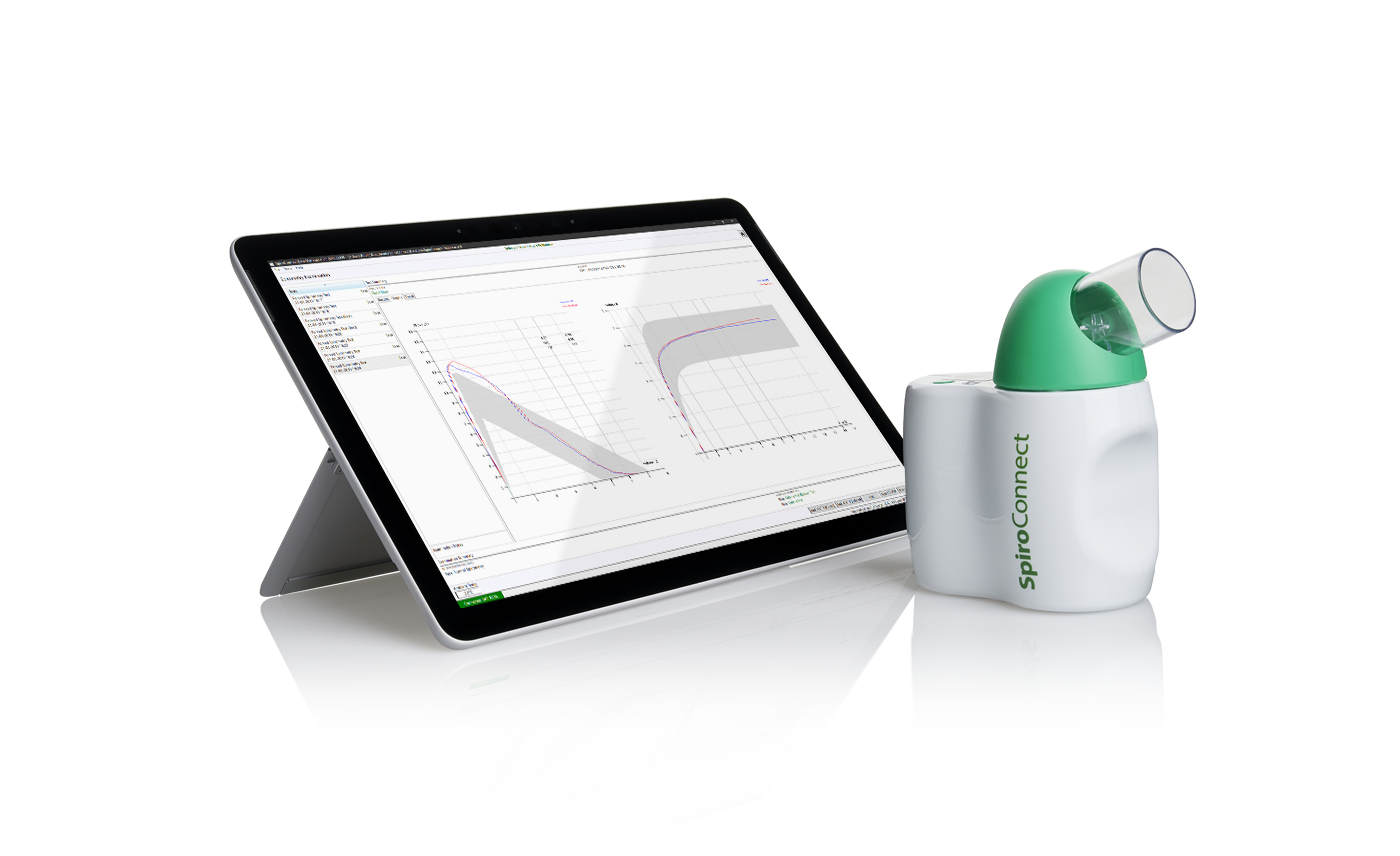

SpiroConnect® is a highly accurate and easy to use wireless PC-based spirometer. With proven turbine technology and a range of innovative enhancements it is the perfect solution for occupational health professionals.

The latest Bluetooth technology means the spirometer can be used as a portable device connecting wirelessly to a PC, laptop or tablet. This functionality also makes it suitable to connect with a number of Electronic Medical Record (EMR) systems used within occupational health and primary care.

Get a quote Brochure

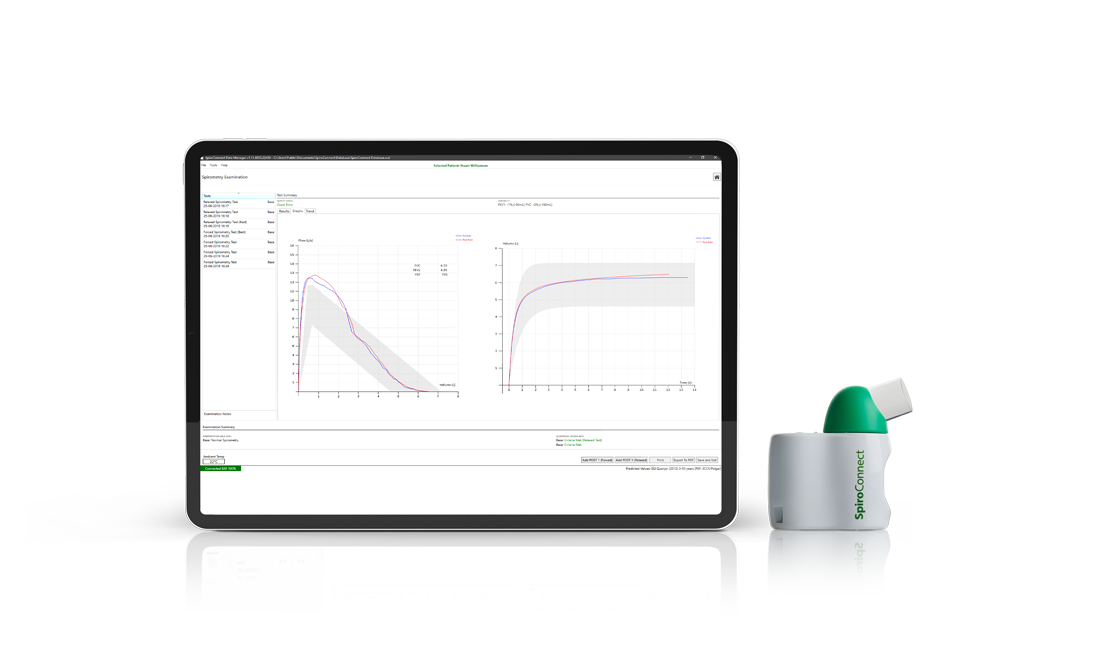

The user-friendly DataManager PC software provides real-time spirometry graphs (volume time and flow/volume) to ensure that lung function tests are completed accurately and any sub-optimal manoeuvres easily being identified. Test results are held within the software for future review and can be easily exported as a one-click option as a PDF.

The software can also be integrated with a number of Electronic Medical Record (EMR) applications making for a seamless and paper less spirometry programme. The PC programme can be used on suitable windows and Android based PC’s.


Key features

  • Wireless Bluetooth connection
  • PC or tablet based
  • Includes GLI predicted values
  • Quick and easy to clean and sterilise
  • Innovative vertical turbine for increased flow rate sensitivity

Measurement & interpretation

Key spirometry parameters are calculated including FEV1, FVC, PEF, VC, FEV1/FVC and FEF 25-75% alongside numerical data for predicted, measured and percentage difference Interpretation is automatically calculated and can include both the Global lung initiative (GLI) as recommended by the Association of Respiratory
Technology and Physiology (ARTP).

The supplied software will also calculate and interpret according to the ATS/ERS 2019 guidelines update on the standardisation of Spirometry.

Request a quote


  • Hygiene

    The SpiroConnect allows for a variety of mouthpieces to be used in conjunction with an occupational screening programme ensuring safe and hygienic testing. Optional Bacterial viral filter (BVF) mouthpieces can be supplied for a safe way to complete spirometry whilst providing reassurance to the patient.

  • Portability

    Being handheld and weighing only 200g makes a difference when portable equipment is required for accurate, mobile lung function screening programmes.

  • Included

    • SpiroConnect® PC software
    • USB Bluetooth dongle
    • PeraSafe sterilising agent
    • Padded weave transit case
  • Optional

    • 3L calibration syringe
    • Disposable BVF mouthpiece

    Request a price list >

  • Consumables

    High-quality bespoke consumables and accessories to support patient testing programmes, reduce the risk of infection and optimise the performance and reliability of equipment.

    Consumables catalogue >

    Order consumables >

  • CPT codes
    94375: respiratory flow volume loop
    94200: maximal voluntary ventilation
    94010: spirometry complete

  • The SpiroConnect® is manufactured by MedChip Solutions and is distributed by Amplivox Ltd. Please note: product availability may differ depending on country regulation and registration. For further information please contact us.
