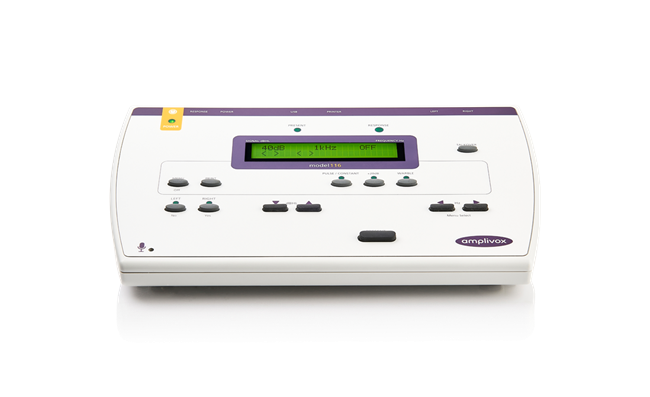

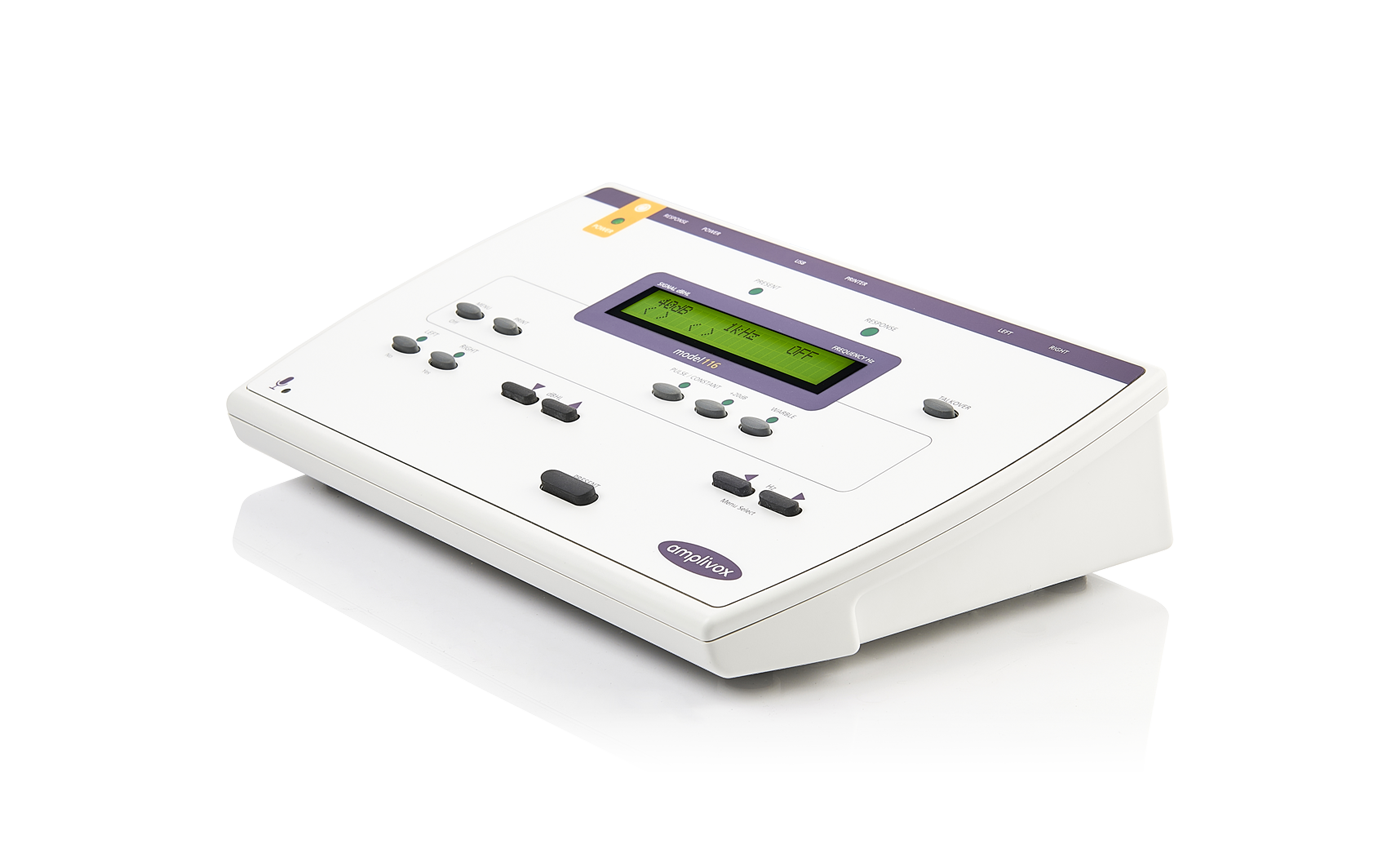

Model 116

Manual screening audiometer

The Model 116 is a cost-effective and easy-to-use screening audiometer for completing hearing tests within schools, primary care and GP surgeries.

The lightweight and robust design benefits any occupational health professional or audiologist who travels to conduct pure tone, warble and continuous hearing tests. The soft key control panel is dependable and functions with ease, with a clear display delivering precise information.

Strong and reliable, offering the simplicity needed to conduct hearing tests in the most challenging environments and at only 720g (1.58lbs), the Model 116 is one of the lightest portable audiometers available.



Get a quote Brochure Support

Test routines

The Model 116 air conduction audiometer allows for testing pure tone audiometry in a wide range of settings such as standard threshold testing or a sweep test with a user defined output levels for testing children. The Model 116 has a wide range of test frequencies to help identify hearing issues such as tinnitus, presbycusis and noise induced hearing losses with the use of pure tone, pulse, warble and/or continuous sound. Learn how to set-up and use the Model 116 in less than three minutes:


Watch video

model-116_front

Key features

  • Compact, lightweight and portable
  • Extended frequency range: 125 – 8000Hz
  • Attenuation range: -10 – 100 dBHL
  • Automatic threshold saving
  • Pure, pulsed and warble tones
  • PC Software included
  • Intuitive and ergonomic design
  • Mains and optional battery power

  • Data management

    Test results can be manually recorded, printed via the optional portable printer and or transferred to PC applications such as Amplivox Amplisuite or Audibase to create both PDF or printed copy. This ensures results can be saved within third-party Electronic medical record (EMR) systems typically used within primary care.


    Time saving

    The audiometer includes all test frequencies and attenuation ranges required to perform a wide range of pure tone audiometry, such as standard threshold or sweep testing for school screening. It offers pure, pulsed, warble and continuous tones which allow for the testing and identification of hearing issues in subjects with tinnitus, presbycusis and noise induced hearing loss (NIHL). Automatic threshold results saving significantly reduces operator test times and increases attention of the test subject for more accurate results.

  • Ergonomic design

    Designed with the operator in mind, the Model 116 has a clear display panel and dedicated soft key layout, allowing total focus on the test subject and reducing the time it takes to complete hearing assessments.


    Portability

    At only 720g (1.58lbs), the lightweight and robust design of the Model 116 is perfect for healthcare professionals who need to travel. It also comes supplied with a custom carry case and all standard accessories. The optional battery power function can be used in all test settings, offering additional flexibility.

model-116_intro-banner

Request a quote



Quote

  • Included

    • Standard audiometric headset
    • Patient response switch
    • Audiogram cards (50)
    • Power supply with country adaptors
    • Carry case
    • USB stick (manuals, audiometry module for Noah and Amplisuite software)

  • Optional

    • Amplivox Audiocups (noise-reducing enclosures)
    • Battery function
    • Thermal printer
    • Pediatric headband
    • USB cable (PC connection)
    • Audibase software
    • USB portable power bank (external)
    • Booth leads

    Request a price list >

  • Consumables

    High-quality bespoke consumables and accessories to support patient testing programmes, reduce the risk of infection and optimise the performance and reliability of equipment.

    Consumables catalogue >

    Order consumables >

  • Specifications
    Frequency range: 125 - 8000Hz
    Attenuation range: -10 - 100dBHL

    CPT codes
    92551: screening, pure tone
    92552: threshold, air

  • Standards
    Audiometer Type 4
    IEC 60601-1
    IEC 60601-1-2
    IEC 60645-1/ANSI S3.6

    Three year warranty as standard. Please note: product availability may differ depending on country regulation and registration. For further information please contact us.
